24 Jul 2024

Handheld industrial grade videoscope

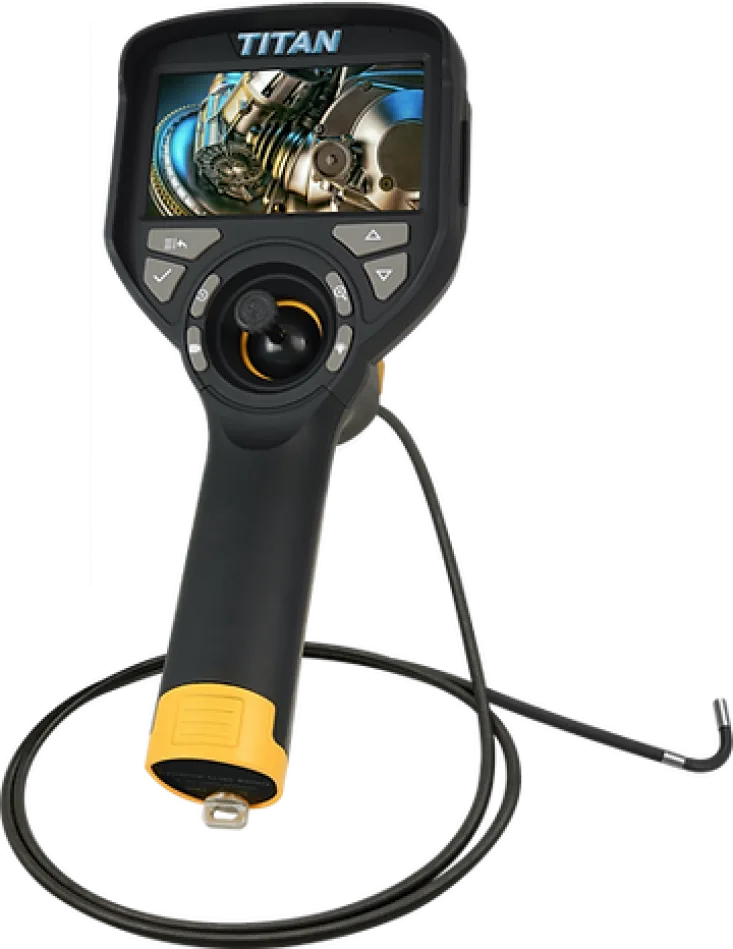

New Titan Tool Supply Miniature Handheld Industrial Grade Videoscope Series

Titan Tool Supply, a global supplier of optical instrumentation and precision micro-finishing tools, has announced the recent global market launch of its TVGM Series. This family of miniature, high-definition handheld industrial-grade videoscopes are designed to support a variety of non-destructive testing and remote visual inspection tasks.

The company says offered in four unique models, with a choice of either a 3.9mm or 6mm camera and either a 1.5M or 3M videoscope probe length, the TVGM Series features dual-key operation, a fully modular and ergonomic design, ease of portability, one-handed operation, and end-user capability to easily swap out probe lengths for increased application adaptability. The end-user interface of the TVGM Series also offers fully end-user selectable operation in up to 10 unique languages.

At the heart of each TVGM Series videoscope lies a powerful onboard controller delivering unparalleled high-definition imaging, reliability, and stability. Each TVGM Series videoscope is further equipped with a high sensitivity onboard 720P CMOS sensor, supporting continuous remote visualisation, inspection, and observation tasks, even under low or reduced light conditions. A 4.3-inch high-definition LCD touchscreen display with high-intensity LED illumination allows for clear viewing of the magnified images and videos captured remotely by the high-resolution videoscope camera. The device also offers on-demand recording, easy file access, parameter setting, and real-time data storage of JPG or AVI files onto an onboard 32GB microSD card.

In addition, TVGM Series videoscopes feature a robust, IP67-rated, wear-resistant braided tungsten alloy insertion cable for 360-degree all-way manual articulation. The cable provides exceptional abrasion resistance and includes a self-locking capability for more precise control. The Series also includes a four-hour working rechargeable battery for an extended field service life and is supplied with a waterproof carrying case.

Typical applications for the Titan Tool Supply TVGM Series include remote visual inspections of smaller-sized precision industrial machinery and equipment; casting, aviation MRO, automotive service, and commercial HVAC inspections; remote detection of foreign objects, blockages, and structural defects; and comparative remote measurements of automotive engine cylinders, pistons, valves, carbon deposit detection, hydraulic and pneumatic parts, steel pipes, castings, and containers, even in low or reduced light conditions and space-constrained environments.



Company info: Titan Tool Supply
